Name: Firegear 20" Stainless Steel Square Pan Gas Fire Pit Insert FPB-20SBSTMSI-N
SKU: 384929

Firegear 20" Stainless Steel Square Pan Gas Fire Pit Insert FPB-20SBSTMSI-N Review

This product is no longer available, Our sales professionals can help you in finding something similar that matches your style, space, and budget. Feel free to contact us today at 1-800-923-4556 or email: [email protected].

Click for Available Replacement.

Do you want an efficient yet durable burner pan for your outdoor fire pit? Buy the Firegear 20" Stainless Steel Square Pan Gas Fire Pit Insert FPB-20SBSTMSI-N now!

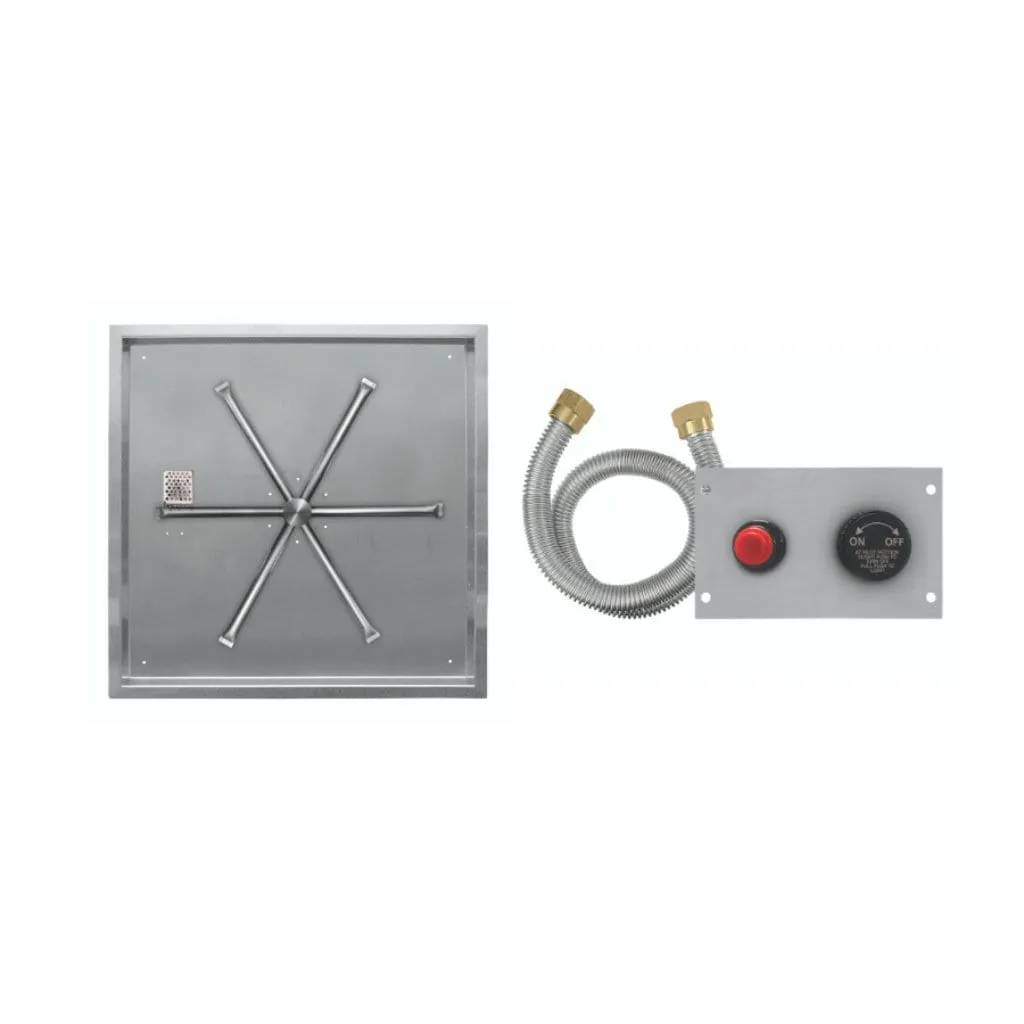

Firegear Stainless Steel Square Pan Gas Fire Pit Insert comes with a burning spur and an ignition system of your choice. This pan is constructed of stainless steel that includes a stainless steel gas flex connector. Also, this magnificent product is battery operated with a remote that controls ignition.

Purchase the Firegear 20" Stainless Steel Square Pan Gas Fire Pit Insert FPB-20SBSTMSI-N today and enjoy the captivating sunset without getting cold. Buy yours now!

Features

Tested and Approved to: ANSI Z21.97-2014/CSA 2.41-2014 standards by Underwriters Laboratories (UL)
Fully assembled & ready to install

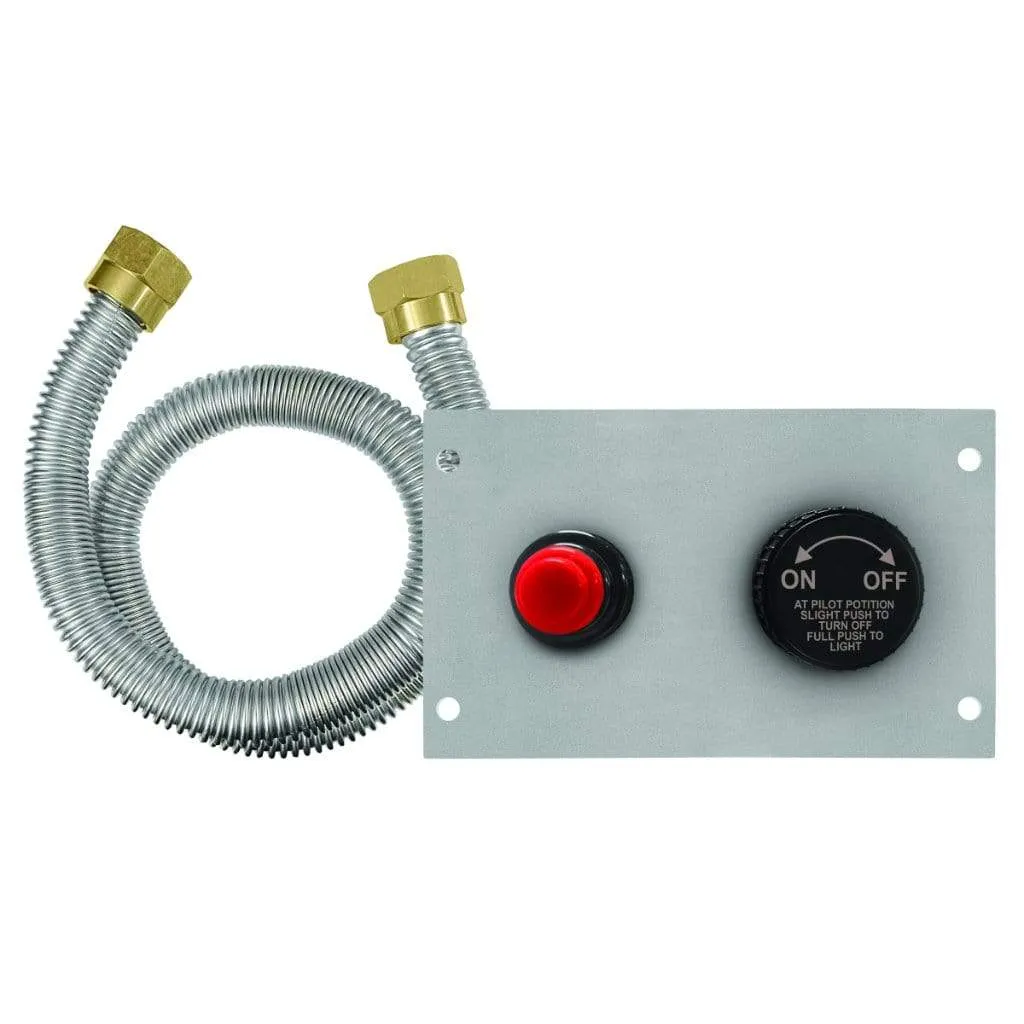

TMSI Ignition with Spark Ignition:

Thermocouple Manual Safety (TMSI) technology
Battery operated Manual Spark push-button ignition
Safety Valve turns gas OFF if the flame goes out
Fully adjustable flame height
Each unit ships with a mounting plate, 46” tranquiline flex line, and all fittings necessary for installation
Ships as Natural Gas, LP Conversion Kits available
Warranty: Five (5) years on stainless steel components. Two (2) years on the gas valve, spark ignition components. Commercial Applications: One (1) year on all parts.

Manuals

Specifications

Pan Size: 20"
Burner Size: 16"
BTU: FPB-20SBSMT-N: 65,000
FPB-20SBSTFS-N:

80,000 BTU on High
48,000 BTU on Low

FPB-20SBSTFS-P:

79,000 BTU on High
47,400 BTU on Low

FPB-20SBSTMSI-N: 65,500
Ignition System:

MT Ignition TFS Electronic Ignition
TMSI Ignition with Spark Ignition

Shipping Weight:

FPB-20SBSMT-N: 20.25 lbs
FPB-20SBSTFS-N: 25 lbs
FPB-20SBSTFS-P: 25 lbs
FPB-20SBSTMSI-N: 23 lbs

Optional Accessories

Glass Windshield

Designed to protect fire pit flame in high wind areas and provides unique reflective flame qualities while the flame is burning.
Heavy-duty 1/4” heat-resistant tempered glass with pencil grind satin edges.
Zinc die-casted plated polished chrome hardware with silicone rubber feet.

Stainless Steel Lid

Made of 304 stainless steel
Brushed finished round lid
Sleek and round flat design for a contemporary look

Flexible Installation Collar

Allows you the flexibility to fill the gap between the fire pit structure and the pan.
Engineered to protect against the outdoor elements including salt water environment
Flexible and easy to adapt for round, square, and rectangular fire pits.

Paver Control Panel Kit

For use when building fire pit enclosures with paver blocks and a TMSI burner system.
Includes stainless steel paver kit bracket and extender, lintel (12" x 3"), screws and fittings, and Tapcon® concrete anchors.

Paver Vent Kit

Intended for gas fire pit enclosures made from paver stones
Kit includes two 3.625" x 8" or 5.625" x 8" vents with mounting plate and extension plate that extend up to 10” wide, two Tapcon® concrete anchors, and two 12”x3” Lintels (20 gauge galvanized steel).
Each vent provides 18 square inches of ventilation
